NII Stali: BMP-3 ERA package premier.

-
NII Stali provided their last premier video showcasing their ERA package intended to be mounted on the BMP-3. This post follows up with a previous post, covering the 4S24 ERA performance showcase.

NII Stali provides more details about the protection package.


The ERA package is based on a newer generation ERA called 4S24.



Additional armour protection covers 62% of the side armour.


Additional armour protection covers 36% of the front armour.

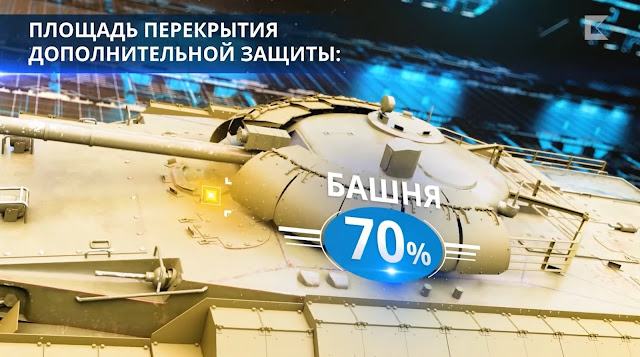

Additional armour protection covers 70% of the turret armour.


The total package weight is 4200kg.


4S24 ERA can function in temperatures ranging from -50C to +55C. Each slab weighs 1,36kg.
Dimensions:
  • 131,9mm wide
  • 251,9mm long
  • 13mm thick

The ERA package provides protection against:
  • Monoblock RPGs
  • B-32 AP rounds
  • 23mm API-T rounds
  • 30mm AP rounds

The ERA blocks do not detonate when hit with:
  • API-T rounds
  • 30mm calibre rounds
  • Fragmentation hits from large calibre HE-F rounds
  • "Napalm"

NII Stali confirms again that the ERA package can be utilized on T-72B3 and T-80BVM tanks and on any other armoured vehicle.


Previously made articles related to BMP-3 ERA. BMP-3 with ERA

 Taken from: Kalashnikov

----------------------------------------------------------------------------------------------------------------------------
----------------------------------------------------------------------------------------------------------------------------
