NII Stali 4S24 ERA showcase video

-

 Earlier NII Stali announcement.

Video created by NII Stali for the showcase of 4S24 ERA.



Individually picked frames from the video.

Individual 4S24 ERA plates




ERA package demonstration

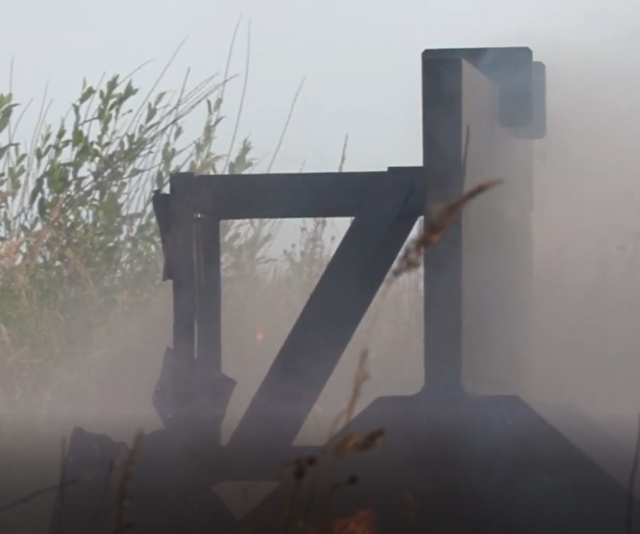

Live fire demonstration using 4S24 container, located at a cedent distance from an armour plate creating a large air gap. The plate represents the side armour of an MBT. NII Stali confirms that the ERA package can be used as an all-around protective package on BTRs, BMPs and MBTs.



The ERA block functionality was tested using a standard RPG-7 firing a PG-7VS HEAT charge with an approximate penetration value of 400mm against steel.


Snippets slowed down for a better understanding of how the charge is countered by the ERA container. A reverse layer added.





Post detonation effects on main armour plate.

The ERA container and the large air gap almost nullified the potential chemical penetration of the HEAT charge. Resulting in small craters ranging from 2mm-5mm.



Effectively the container holding the ERA is a one-time use addon which would need to be fully replaced.


The total armour "thickness" is around 500mm from the ERA container to the armour plate.


Interestingly enough, this demonstration only showcases the ERA performance when mounted as side hull armour, where the overall air volume is larger. Possibly the post-detonation effect would be more different if the ERA were to be mounted on a lighter vehicle like a BMP or BTR at a smaller distance to the armour plate.

NII Stali as promised has showcased the ERA capabilities but sadly did not provide anything more valuable regarding light vehicle protection using 4S24 containers.

----------------------------------------------------------------------------------------------------------------------------
----------------------------------------------------------------------------------------------------------------------------
