T-72B3 Arena-M continuation

-

 Previous article: T-72B3 Obr.2016 equipped with Arena-M APS

The article above contains previously covered footage about the T-72B3 with Arena-M, while this article continues this current Arena-M topic.

Today TV Zvezda premiered another episode of their weekly "Military Acceptance" show,  where they present different military equipment.

In today's episode, TV Zvezda released more footage about the T-72B3 Obr.2016 with Arena-M APS.


T-72B3 Obr.2016 with Arena-M equipped with Nakidka thermal masking tarp.




T-72B3 Obr.2016 with Arena-M APS mounting.

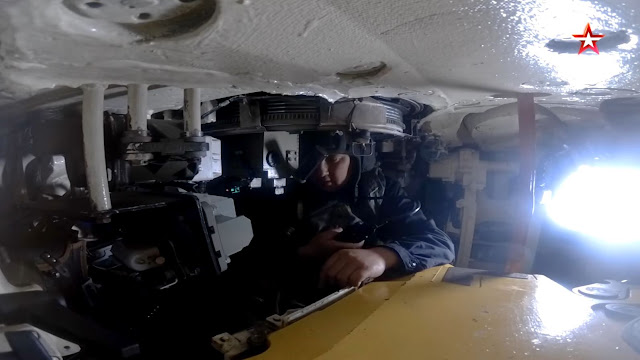

Commanders position.

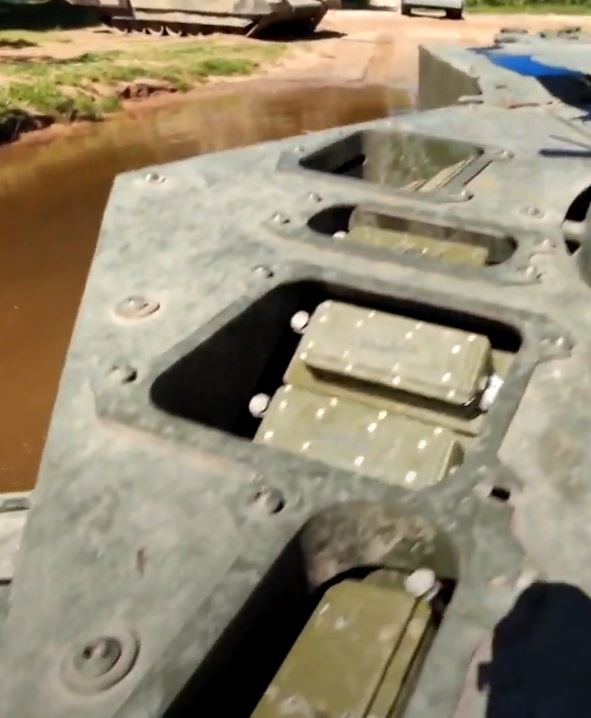

Arena-M launch shafts and countermeasures.



The T-72B3 in this video had to part-take in underwater tests. Mainly to see if the electronics and the APS can still function after being submerged underwater for 30 minutes.


The countermeasure charge is marked as a mockup aka dummy charge and doesn't seem to be a real active one.

Arena-M computing block.


Writes note: They are progressively releasing more and more footage about this vehicle. This time they show closeups of the actual APS, presenting the vehicle in its full combat loadout, including Arena-M APS, Nakidka thermal tarp, side-mounted containers (presumably spare parts for the APS or carrying countermeasure chargers for the APS).

Taken from: TV Zvezda

----------------------------------------------------------------------------------------------------------------------------
----------------------------------------------------------------------------------------------------------------------------
