T-90 Obr.1992 with AGAVA-2 diagrams

-

This is a continuation post, primarily expanding on the history of the AGAVA-2 thermal imaging sight.

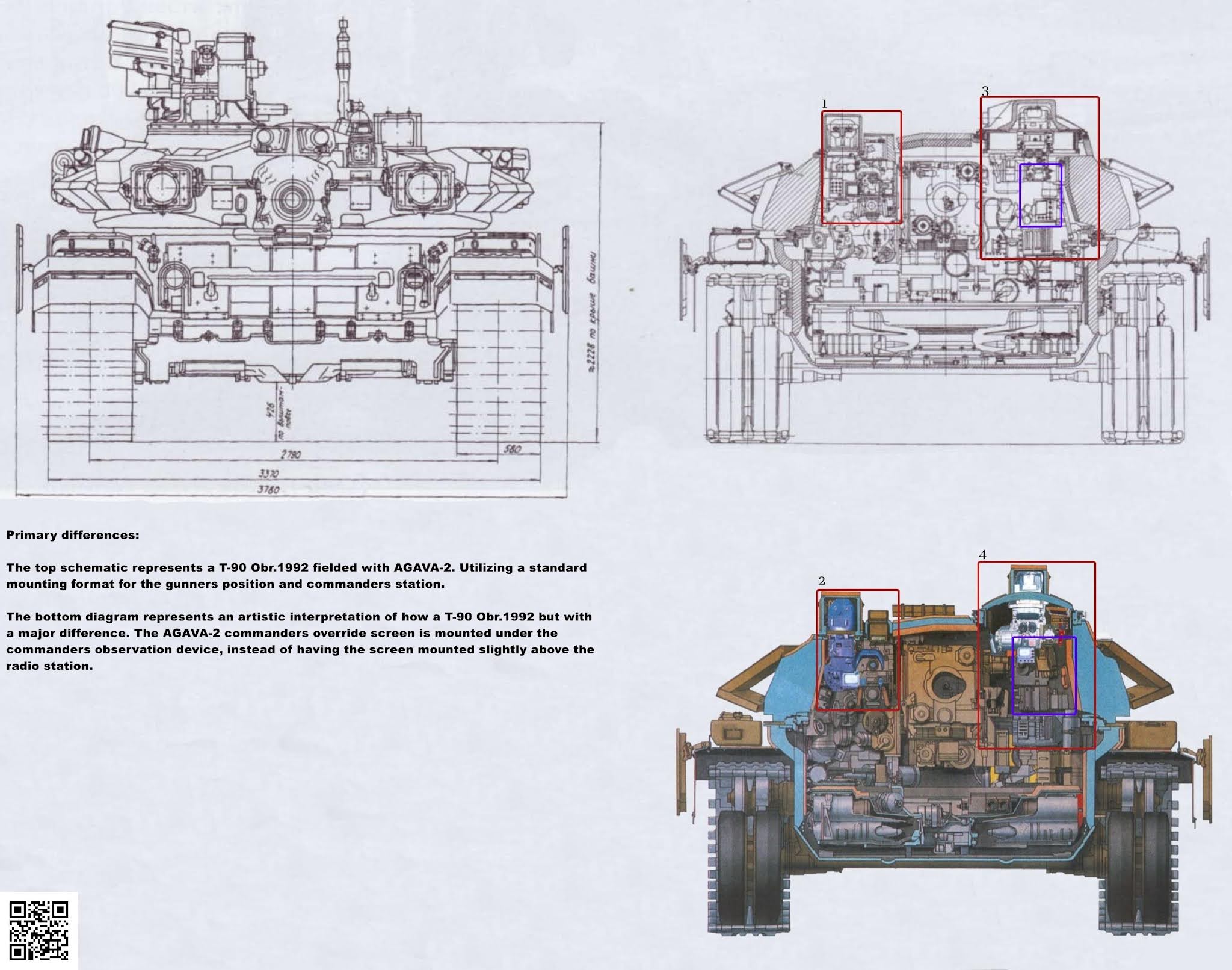

Considering that all the information regarding the sight has been compiled in the previous articles, this small post simply expands on the collection with some extra schematics that were provided by the UVZ archives for an old magazine.

Relevant topics: T-90 demonstrator and its uncommon sight, AGAVA-2 History, Soviet Union/Russian thermal sight development history



Open image in new tab for full resolution

Editor's Note: I have no idea when I will close this topic, considering additional information regarding AGAVA-2 occasionally appears and seems to be a relevant addition in the expansion of this topic.

Taken from: Sergei Suvorov Tank T-90

----------------------------------------------------------------------------------------------------------------------------
----------------------------------------------------------------------------------------------------------------------------
