BMP-2 with lattice screen package

-

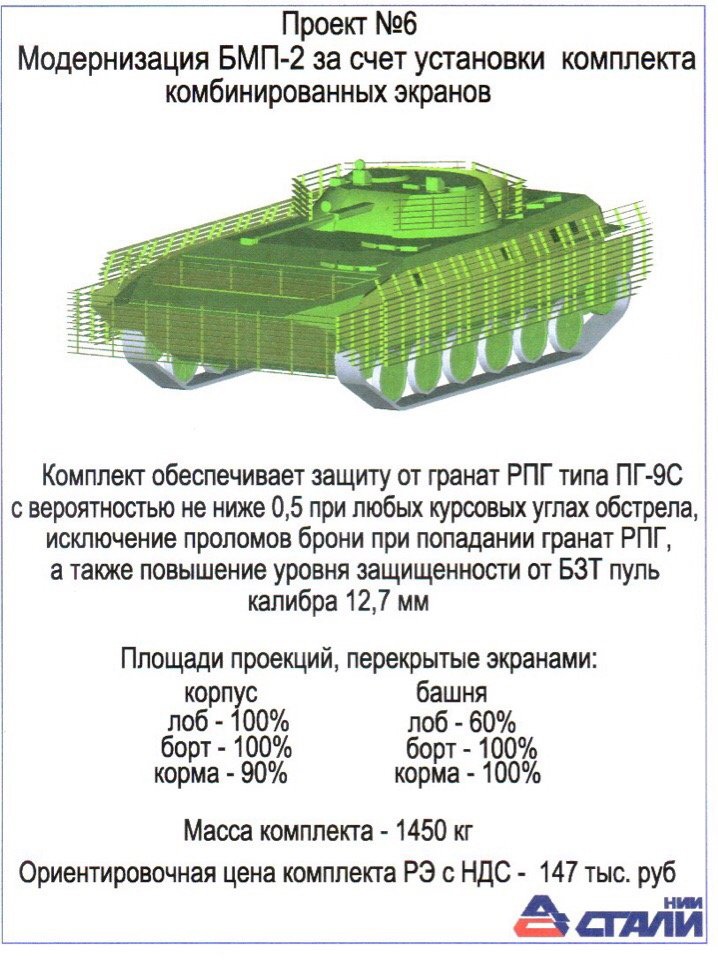

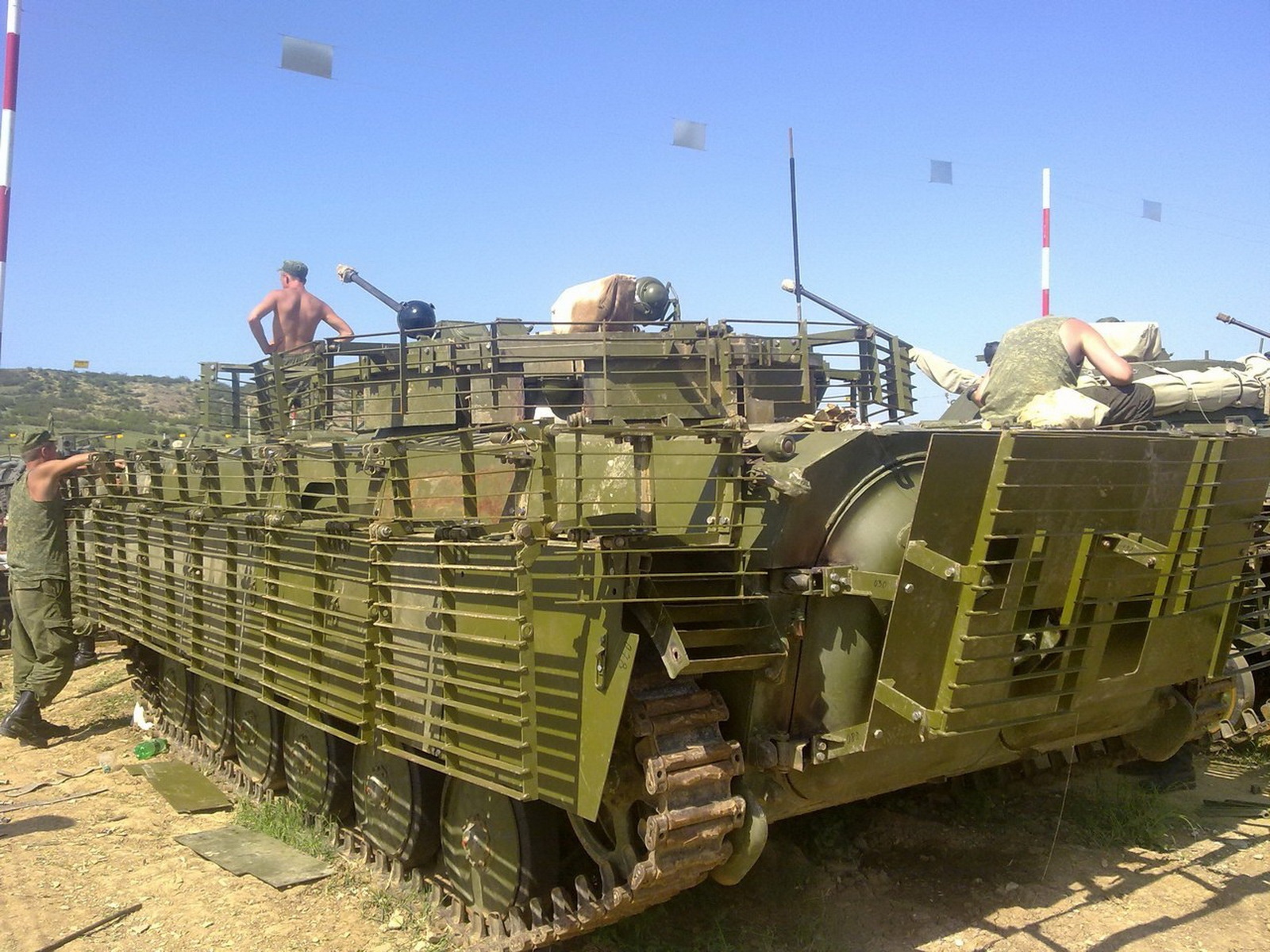

A set of lattice screens from JSC "Research Institute of Steel" (NIIStali) installed on the BMP-2.
The principle of operation of the LS is based on the destruction of the chemical cumulative funnel when an RPG hits between the bars of the grid and thereby disrupts the formation of the penetrating jet. The probability of preventing the penetration of an RPG with the help of LS does not exceed 0.5-0.6.




 Taken from: NII Stali
